electrical Engineering – ESplan® PE+ (max. 40 Pages)

485,00
Plus 19%
Delivery Time: ca. 2-3 Werktage
Additional costs (e.g. for customs or taxes) may occur when shipping to non-EU countries.

ESplan/PE+ is a starter package ideal for a low-cost-start into the professional world of high-end solutions in the electrical CAE / CAD segment. Designed projects are upward compatible to all other ESplan ® versions. An upgrade to higher versions is possible at any time without problems.

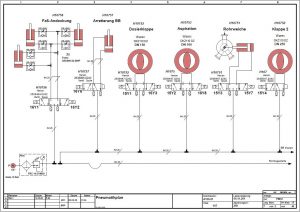

ESplan ® is an easy-to-learn software for designing circuit – and control diagrams in electrical and fluid. Automated functions determine the material needs, manufacturing- and production- data.

SKU: SW-10090
Kategorie: ESplan Software
Schlagwörter: CAE - Einsteigerversion

With the CAE/CAD software ESplan ® you can efficiently create technical documentation of industrial switchgear and control systems.

This powerful and practice-oriented developed software program allows a holistic and comprehensive electrical engineering in the switching technology and control engineering.

The goal of highest cost-savings by optimizing the operating cycles from the designing up to production, requires specific performance characteristics.

The conceptional idea of the ESplan ® is to ensure efficient performance with an open and technically versatile system for the planning of individual work stations and for large integrated global system structures.

ESplan ® is an CAE and CAD program at the same time. The object orientated thought connects the graphics and the database object. Through parallel instead of serial threads (multi threads) in real-time, usual generation runs are optimized. In ESplan ® Terminal diagrams & Co. are ready instantaneously and not created in a separate step.

For the easy usage ESplan ® supports the user with the Pass-Over function. Whilst moving the mouse over the screen, the system selects in a tool tip window the according commands of the right mouse button. Attachment units and symbols are recognized automatically and can be edited quickly by using the correct system functions.

Global requirements are served by the Unicode capable solution. It is possible to use Chinese, Japanese, Cyrillic and other character fonts. CAD data exchange is guaranteed by the world wide standard DXF. With the identification of blocks (also “block in block”), the Unicode capability of different fonts like TTF and SHX and much more features, the import and export of CAD data becomes a real pleasure.

ESplan/PE+ evaluates all circuit diagram data in real time. In automated, parallel processes these informations are determined without generation runs (“multithreading”). Including:
– Drawing frame data
– Project index
– Device index
– Terminal diagrams
– Sums- and parts- lists
– Cable plans
– cable pull list
– contactor-, cross reference and layout controls
– all cross reference functions

Included are symbol libraries in the electrical and building services (about 2000 symbols). The free symbol and macro designing of your own libraries is possible. It is possible to connect to any ODBC- capable manufacturers database.

ESplan/PE+ offers extensive project functions and possibilities in symbol- and macro libraries :
– Project forwarding via email directly
– device box function

ESplan/PE+ has it’s own CAD core. This allows::
– a great deal of drawing functions
– design with freely with open scales and units
– dimensioning function (architecture / machinery construction)
– pages sizes are free definable
– DXF- import/ export
– picture file import

The completion of a service- and support contract will be very useful for you. This is the only cost-effective way to get the newest improvements and updates. For the future in a rapidly changing technology market you have a guarantee for the current data format compatibility with other ESplan/PE+ versions and projects. Hotline service included.

Inform yourself more about current prices or simply request a individual offer:
